Caso de pieza · Metal 3D Printing

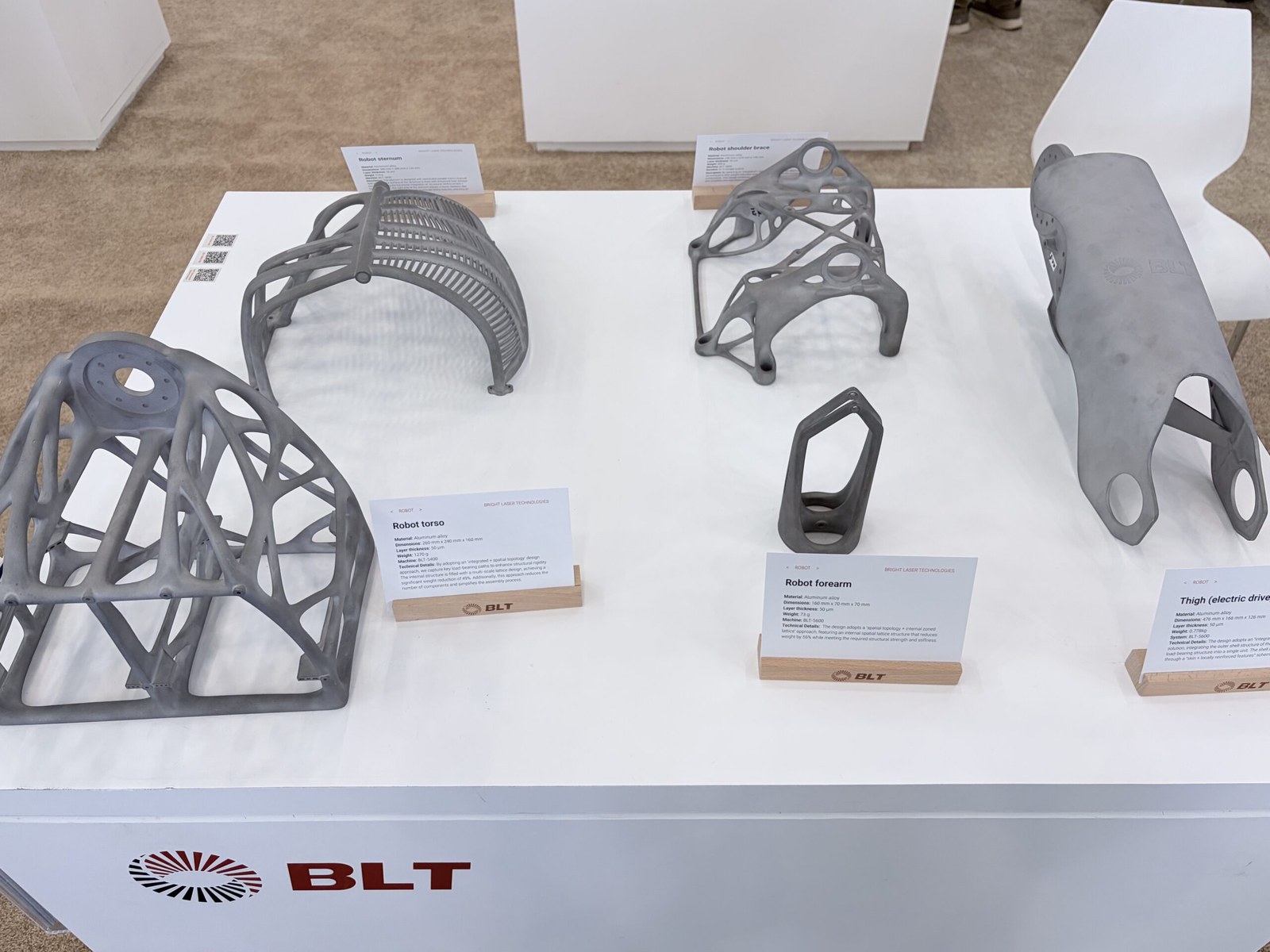

Piezas topología AM en mesa de showroom
Mesa con cinco blancos topología y fichas — para comparar tirantes, costillas y carenas en una visita RFQ.
- 01
Design intent
Showroom table of five topology-style metal AM blanks with placards — for comparing open struts, slotted ribs, and fairing skins on one RFQ visit; not a ranked product family.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
- 02
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
- 03
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
- 04
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.
Especificación típica
Puntos de partida para esta pieza
- Process
- Metal 3D Printing
- Material
- Aluminum alloy TBD
- Form
- Part / context blank
- Industry
- Industrial
- Post
- Support removal; finish TBD per drawing
Siguiente paso
¿Tiene una pieza similar?
Cargue su CAD y sus planos. Un ingeniero revisa los materiales, las tolerancias y el acabado antes de cotizar.
