Nido de válvulas Tesla AM en placa

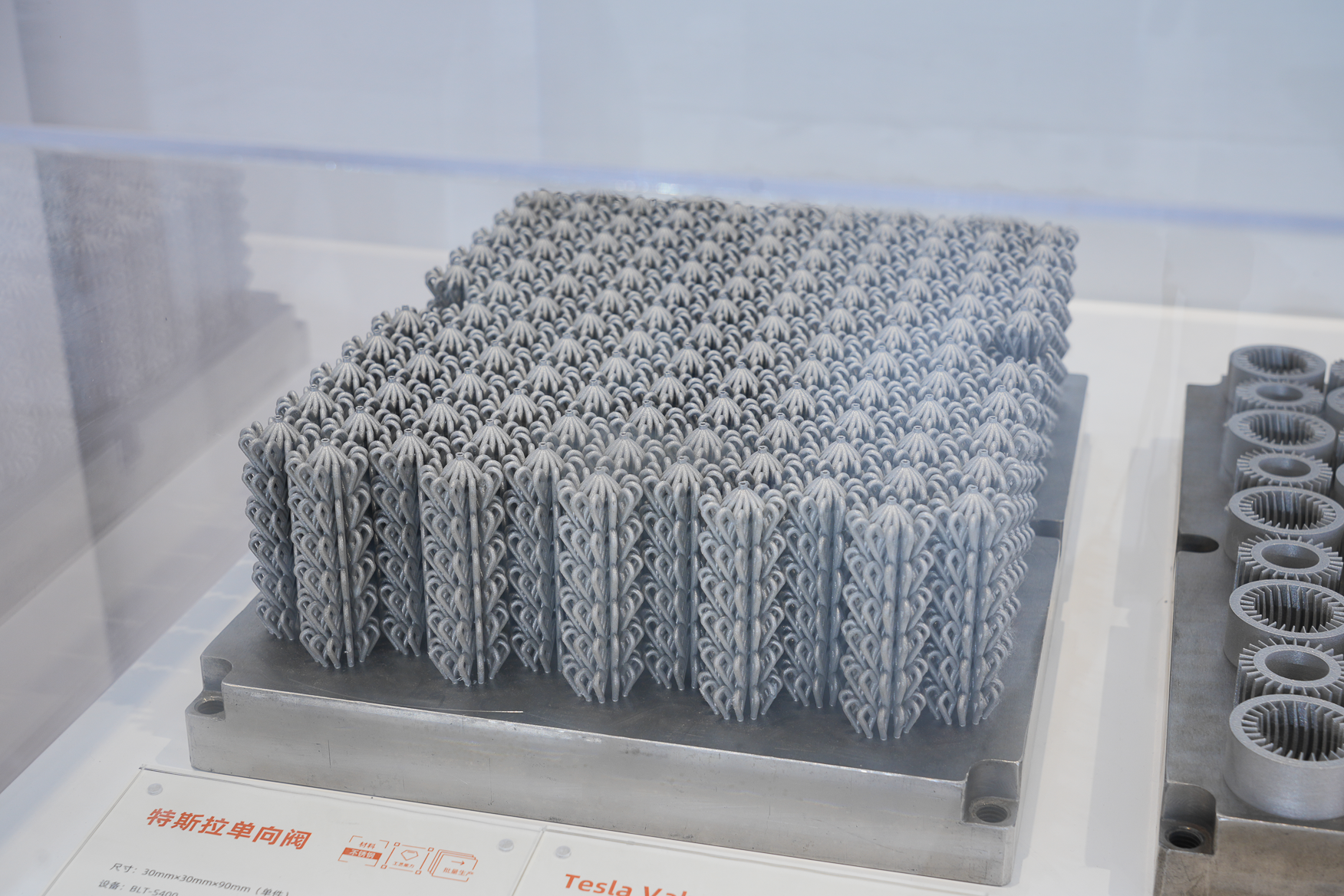

Tall Tesla-valve style one-way channel blanks nested on a full plate — for discussing passive-check geometries, powder escape in stacked loops, and batch cut-off.
Especificación típica
| Item | Typical value |
|---|---|
| Process | Multi-part metal AM plate |
| Form | Tall Tesla-valve channel blanks |
| Features | Stacked loop / vane pattern |
| Post | Powder flush; cut off plate |
| Note | Geometry nest for RFQ talk |
Tesla-valve nest notes
Stacked internal loops trap powder unless escape holes and flush direction are planned early.
- State working fluid class only if you have it
- Keep one inspection cut in early articles
Honesty bar
No claimed pressure-drop curves, OEM valve brands, or leak-rate guarantees on this page.
