Caso de pieza · Metal 3D Printing
Par de juntas robot bifurcadas con brida AM

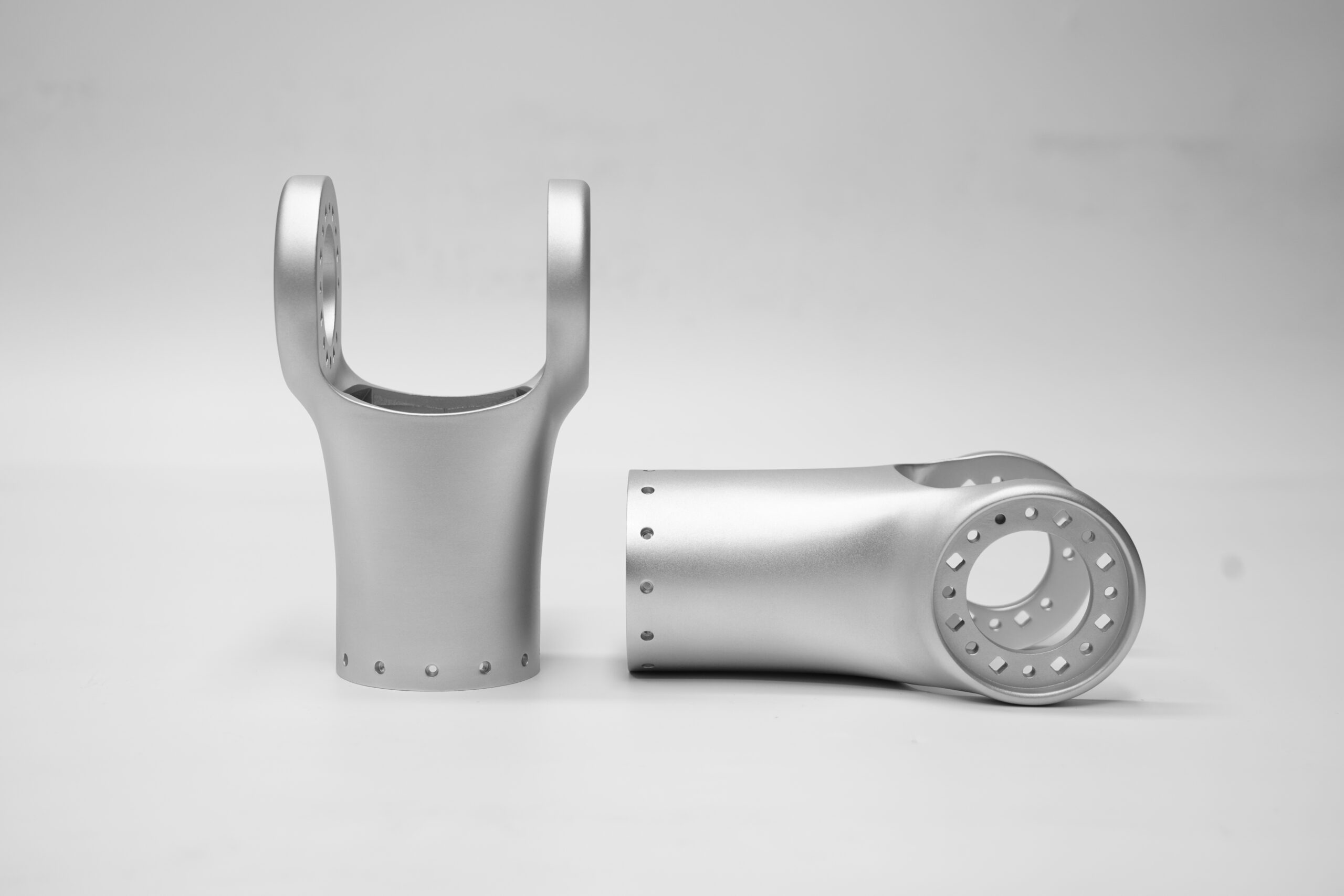

Studio pair of bifurcated Y-flange robot joints (upright and profile) — for discussing bolt circles, base vent holes, and which faces stay as-built versus milled after cut-off.
Pair-view framing
Showing upright and profile views helps call bolt circles, wall thickness, and powder-escape holes at the base.
- Mark which flange is the primary datum
- Keep ring walls thick enough for taps or inserts
RFQ checklist
Alloy family, envelope, critical flange flatness, and any coating keep-outs you need stated.
Especificación típica
De un vistazo
| Item | Typical value |
|---|---|
| Process | Metal powder-bed fusion |
| Material | Al or Ti alloy |
| Form | Bifurcated Y-flange joint (pair view) |
| Interfaces | Dual ring flanges + cylindrical base |
| Post | Support removal; mill flange faces |
Siguiente paso
¿Tiene una pieza similar?
Cargue su CAD y sus planos. Un ingeniero revisa los materiales, las tolerancias y el acabado antes de cotizar.
