Cupón de placa térmica de pin-fins AM
Cupón térmico de pin-fins con agujeros de montaje — paso de pines y planitud; no es un cooler en vatios.
Especificación típica
| Item | Typical value |
|---|---|
| Process | Metal 3D Printing |
| Material | Aluminum or titanium alloy TBD |
| Form | Part / context blank |
| Industry | Electronics |
| Post | Support removal; finish TBD per drawing |
Design intent

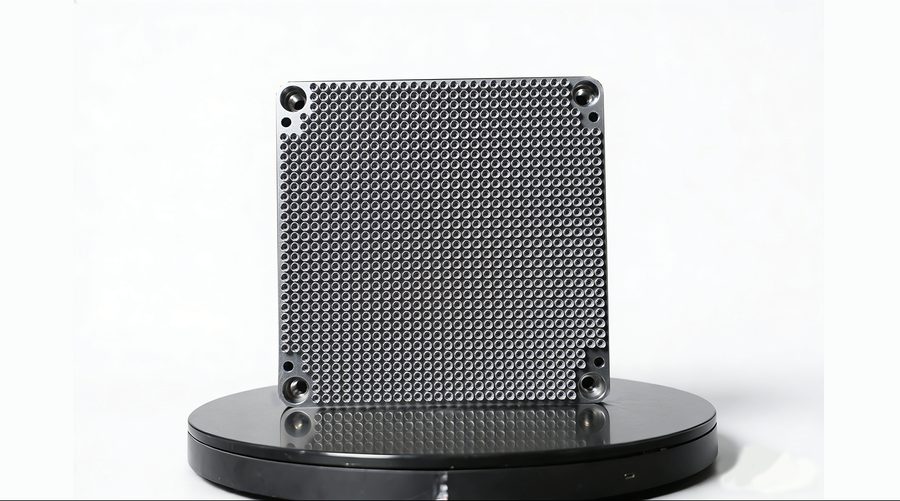

Square pin-fin thermal plate coupon with corner mounting holes on a black pedestal — for RFQ talk on pin pitch and which faces need flatness; not a Watt-rated cooler listing.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.
