Estudio de estator en jaula de pilares AM
Blanco tipo estator con anillo de pilares — holgura y caras de datum; no es conjunto rotativo certificado.
Especificación típica
Valores clave
| Item | Typical value |
|---|---|
| Process | Metal 3D Printing |
| Material | Metal alloy TBD |
| Form | Part / context blank |
| Industry | Aerospace |
| Post | Support removal; finish TBD per drawing |
Design intent

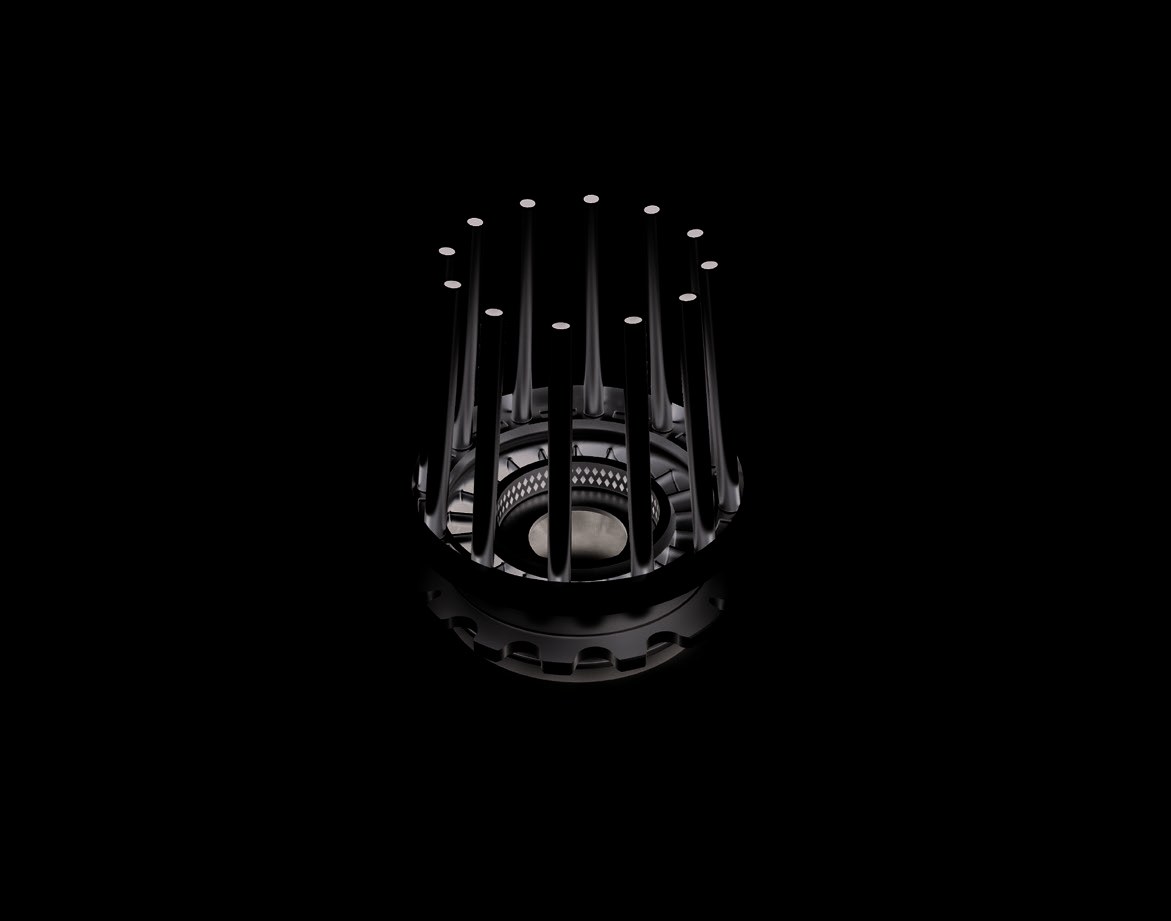

Dark-studio pillar-cage stator-style blank with a ring of vertical rods — for RFQ talk on cage clearance and which faces are datums; not a certified rotating-assembly listing.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.
Siguiente paso
¿Tiene una pieza similar?
Cargue su CAD y sus planos. Un ingeniero revisa los materiales, las tolerancias y el acabado antes de cotizar.
