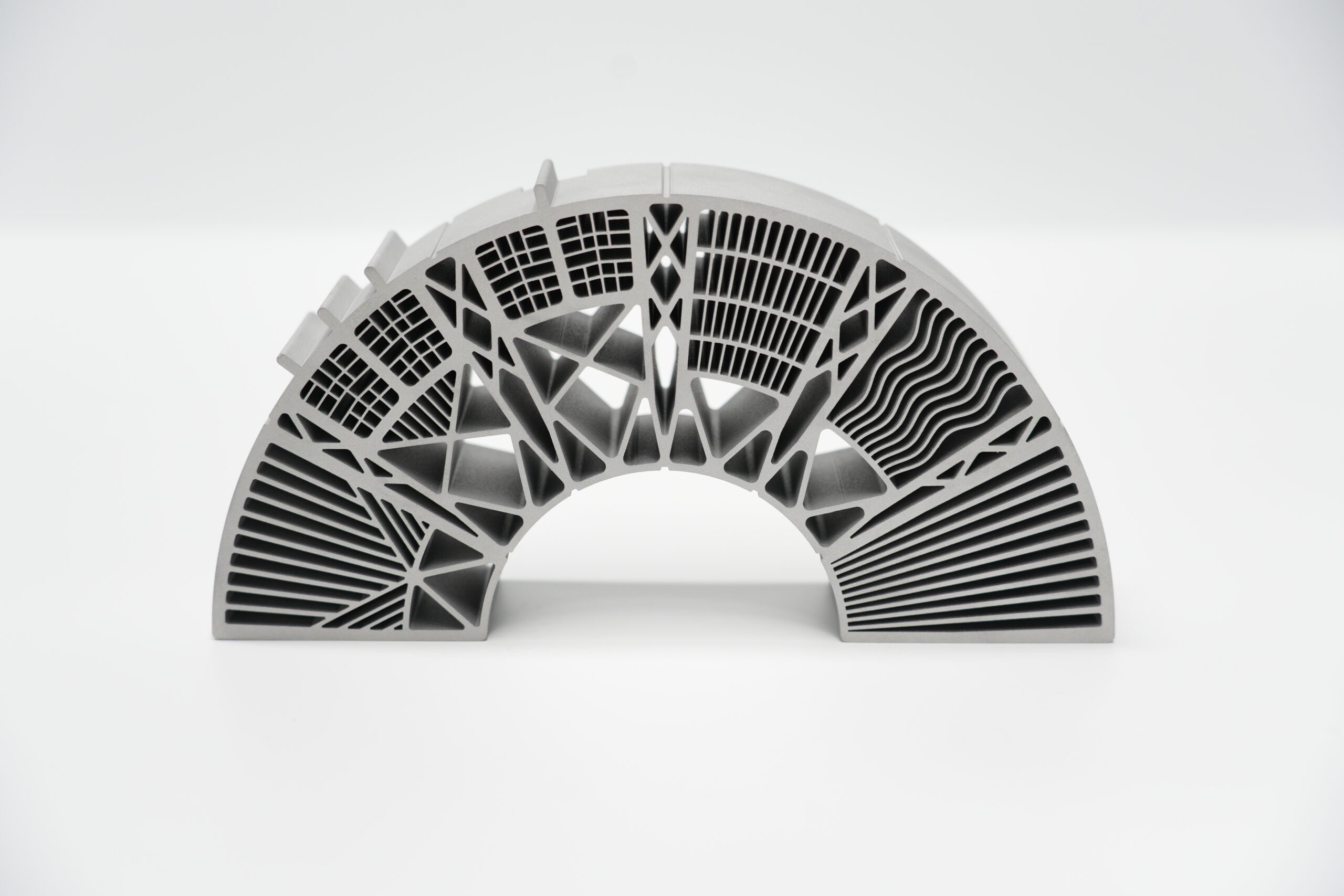

Metal additive semi-circular arch sample with multiple lattice and fin geometry segments

Caso de pieza · Metal 3D Printing

Arco de geometrías multi-celosía AM

Name: Arco de geometrías multi-celosía AM
Brand: 3DWK

Semi-circular metal AM arch segmented into lattice, grid, and fin coupons — for comparing printable structure styles side by side without inventing thermal or structural rankings.

Subir una pieza similar Especificaciones típicas

Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.

ProcessMetal AM geometry sample

MaterialAl or Ti alloy

FormSegmented multi-lattice arch

VariantsLattice / grid / fin sections

Item	Typical value
Post	Powder flush; optional segment finish

Why show a segmented arch

Different lattice and fin styles change powder removal difficulty and inspection even when they share one outer envelope.

Label each segment if you quote them separately
Keep mounting tabs out of critical flow or contact faces

Honesty bar

No Watt-per-Kelvin claims, no ranked "best lattice" statements, and no invented test-lab results on this page.
