Trío de engranajes planetarios con radios celosía AM
Tres planetarios con radios de celosía — acabado de dientes y holguras; no es un listado de caja OEM.
- 01
Design intent

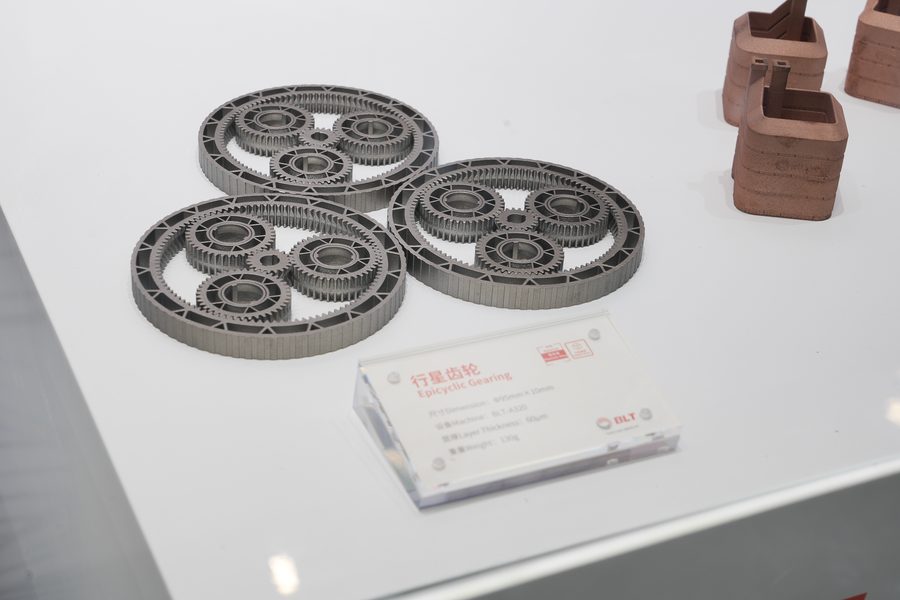

Three epicyclic planetary gear blanks with lattice spokes on a show table — for RFQ talk on tooth finish and carrier clearances; not a gearbox OEM listing.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
- 02
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
- 03
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
- 04
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.
Especificación típica
Puntos de partida para esta pieza
- Process
- Metal 3D Printing
- Material
- Steel or titanium alloy TBD
- Form
- Part / context blank
- Industry
- Industrial
- Post
- Support removal; finish TBD per drawing
Siguiente paso
¿Tiene una pieza similar?
Cargue su CAD y sus planos. Un ingeniero revisa los materiales, las tolerancias y el acabado antes de cotizar.
