Segmento de intercambiador de calor con celosía AM

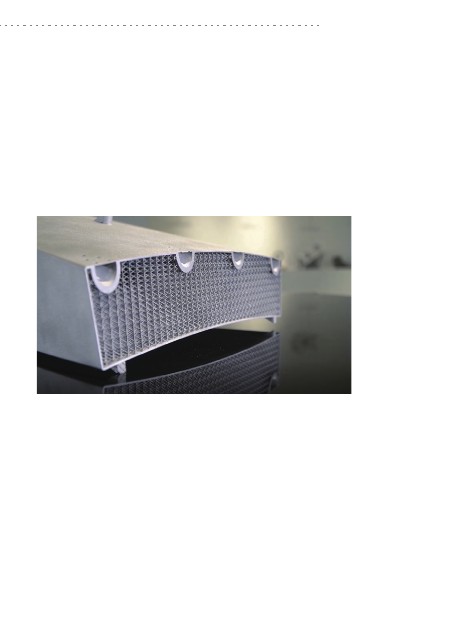

Segmento abierto de intercambiador con canales en celosía — para tamaño de celda y puertos; sin potencias inventadas.
Especificación típica
Valores clave
| Item | Typical value |
|---|---|
| Process | Metal 3D Printing |
| Material | Aluminum or titanium alloy TBD |
| Form | Part / context blank |
| Industry | Aerospace |
| Post | Support removal; finish TBD per drawing |
Design intent
Open-face lattice-channel heat-exchanger segment on a show table — for RFQ talk on cell size, port lands, and flush paths; not a Watt-rated cooler listing.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.
Siguiente paso
¿Tiene una pieza similar?
Cargue su CAD y sus planos. Un ingeniero revisa los materiales, las tolerancias y el acabado antes de cotizar.
