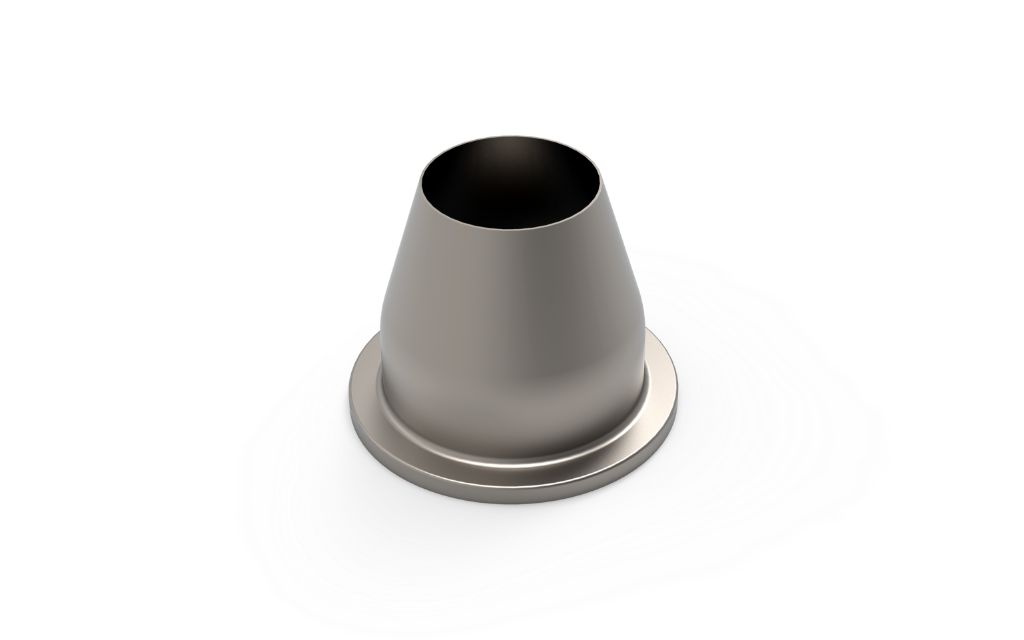

Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK example page — brand remains 3DWK; not a BLT storefront listing.
ProcessMetal AMEjemplo · a confirmar
MaterialNi superalloy (example)Ejemplo · a confirmar
JacketLattice over solid linerEjemplo · a confirmar
BoreMay need flow-face finishEjemplo · a confirmar
Lattice jacket cautions
Lattice around a flow liner can save mass but traps powder if cells are closed. Design escape holes and show them on the drawing.
- Transition lattice struts gradually into solid walls
- Keep the flow bore free of support scars if fluid performance matters
No pressure or temperature ratings are claimed on this example page.
Ejemplo · a confirmar
Next step
¿Tiene una pieza similar?
Cargue su CAD y sus planos. Un ingeniero revisa los materiales, las tolerancias y el acabado antes de cotizar.
