Caso de pieza · Metal 3D Printing
Bastidor de estator de motor eVTOL AM

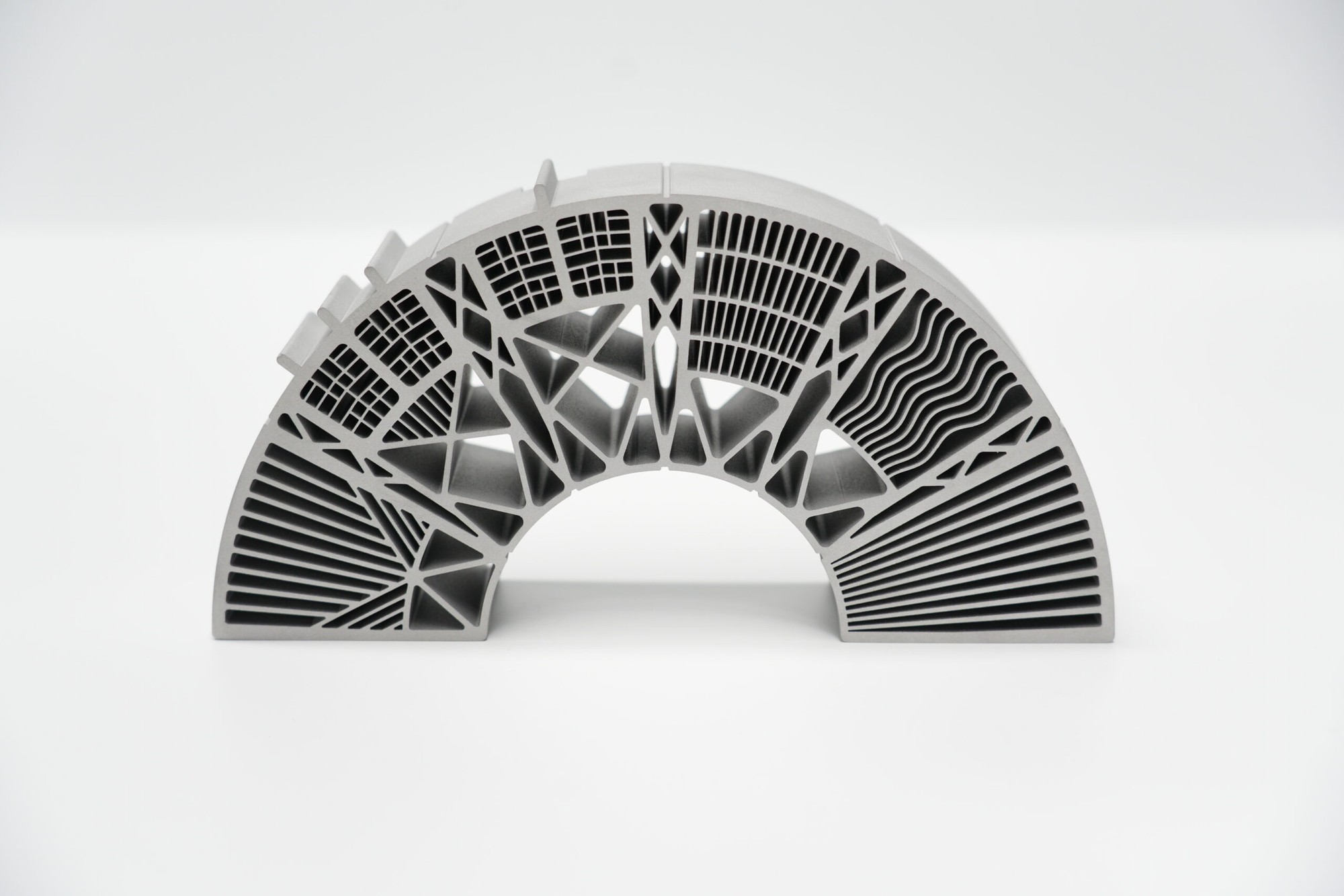

Aluminum-class eVTOL motor stator frame blank with integrated lattice and fin-style thermal regions — for discussing structure-plus-cooling in one metal AM body; not a certified flight article.
Structure-function integration
Stator frames often need stiffness, a precise bore, and heat paths in a tight envelope. Metal AM can combine those regions in one blank, then CNC only the stator interface.
- Separate structural ribs from cooling lattices in the drawing notes
- Call primary flange datums before any coating discussion
What we will not invent
No thrust, RPM, endurance, or airworthiness claims on this page. Bring certification expectations on the RFQ if they apply.
Especificación típica
De un vistazo
| Item | Typical value |
|---|---|
| Process | Metal AM stator frame blank |
| Material | Aluminum alloy |
| Form | Ring frame with thermal inserts |
| Thermal | Lattice / fin-style regions |
| Post | Mill stator interface datums |
