Caso de pieza · Metal 3D Printing

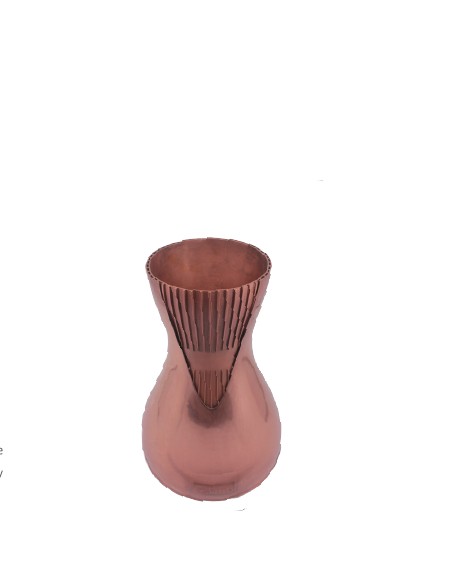

Tobera de escape aero de cobre AM con canales

Tobera de escape de cobre con paredes canalizadas — para RFQ de aleaciones conductoras; no es una tobera de vuelo.

01
Design intent
Copper-class aero exhaust nozzle blank with ribbed channel walls — for RFQ talk on conductive alloys and which faces stay as-built; not a flight-qualified nozzle listing.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
02
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
03
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
04
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.

Especificación típica

Puntos de partida para esta pieza

Siguiente paso

Cargue su CAD y sus planos. Un ingeniero revisa los materiales, las tolerancias y el acabado antes de cotizar.
