Caso de pieza · Metal 3D Printing

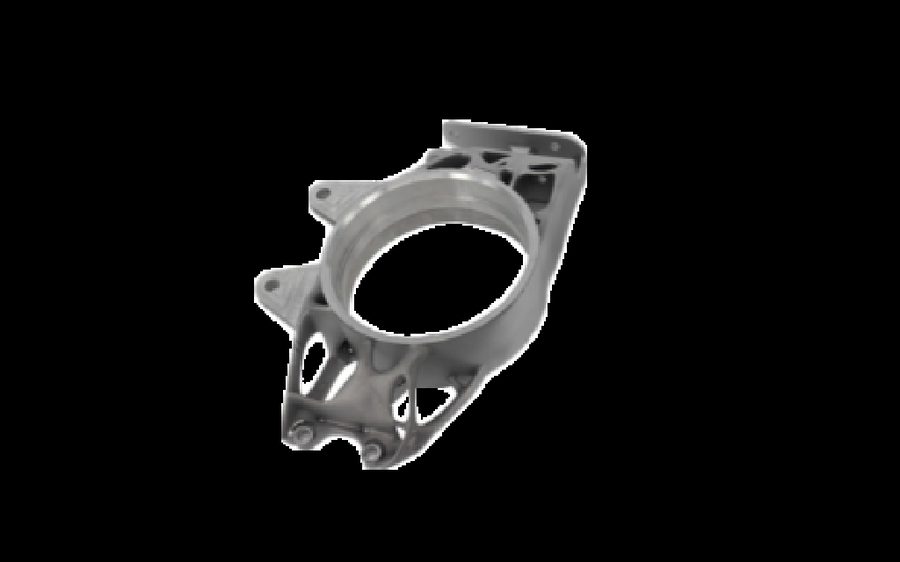

Mangueta de dirección alveolada AM
Mangueta alveolada con gran bore de cubo — acabado de hub y planitud de pestañas; no es chasis certificado.
Especificación típica
| Item | Typical value |
|---|---|
| Process | Metal 3D Printing |
| Material | Aluminum or titanium alloy TBD |
| Form | Part / context blank |
| Industry | Automotive |
| Post | Support removal; finish TBD per drawing |
Design intent
Webbed steering-knuckle blank with a large hub bore and multiple mount tabs — for RFQ talk on hub finish and tab flatness; not a certified chassis listing.
- Call which faces are datums versus cosmetic
- Keep powder-escape paths open on lattice or thinwall features
- State preferred alloy family on the RFQ
Manufacturing notes
Orient so internal cavities stay flushable after support removal. Mark any sealing, bearing, or flange faces that must be secondary-finished.
What to put on the RFQ
- Preferred alloy family
- Envelope and critical flatness or bore positions
- Any coating keep-out zones (state them; we do not invent certifications)
Honesty bar
No invented customers, prices, cycle times, certifications, or performance guarantees on this page.
Siguiente paso
¿Tiene una pieza similar?
Cargue su CAD y sus planos. Un ingeniero revisa los materiales, las tolerancias y el acabado antes de cotizar.
