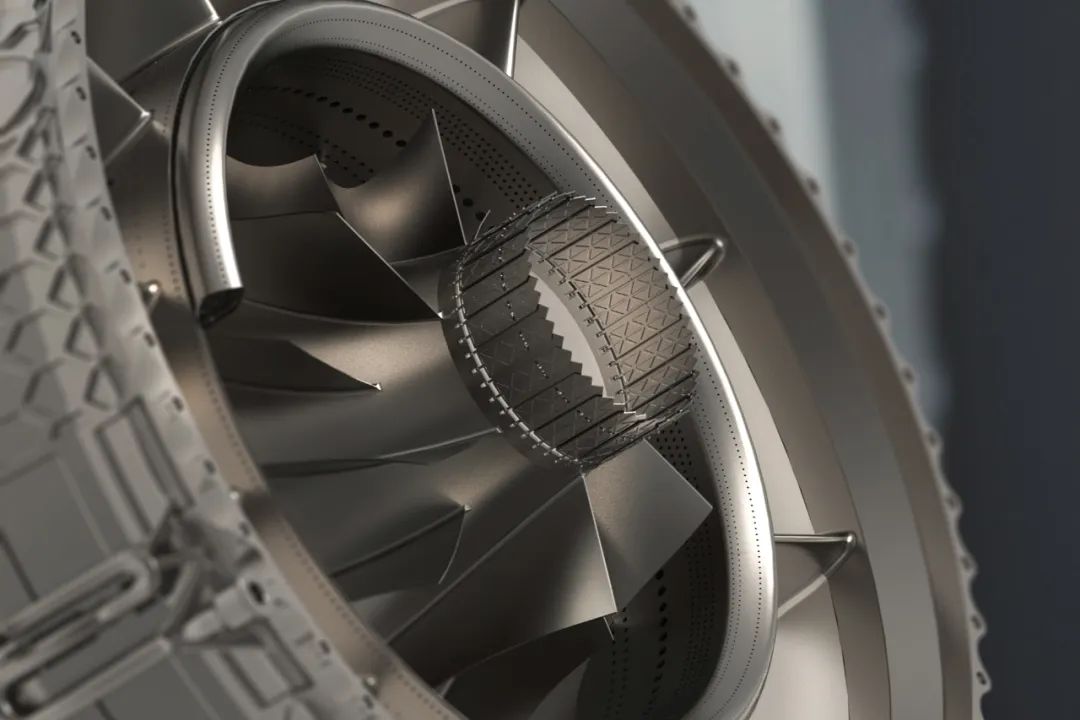

Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
ProcessMetal powder-bed fusion
MaterialNi or Ti alloy
FormMulti-blade rotor + perforated rings
HubLattice / textured center
| Item | Typical value |
|---|---|
| Post | Support removal; optional CNC datums |
Design intent
This example shows blades, cooling-style perforations, and a lattice hub sharing one metal AM blank.
- Call out which rings are flow paths versus structural skins
- Keep blade edges inspectable after support removal
- Do not invent airflow, RPM, or certification numbers on this page
Manufacturing notes
Perforated rings need reliable powder removal and clear inspection access. Mark primary datums for any post-machined bores.
What to put on the RFQ
- Preferred alloy family
- Which faces need blend or polish
- Any NDT expectations (state them; we do not invent certifications)
