Caso de pieza · Metal 3D Printing

Núcleo intercambiador hexagonal de cobre AM

Copper exchanger core with a hexagonal lattice cross-section and a side notch revealing vertical cell walls — distinct from plate-style cold plates; for discussing lattice cores and cutaway inspection.

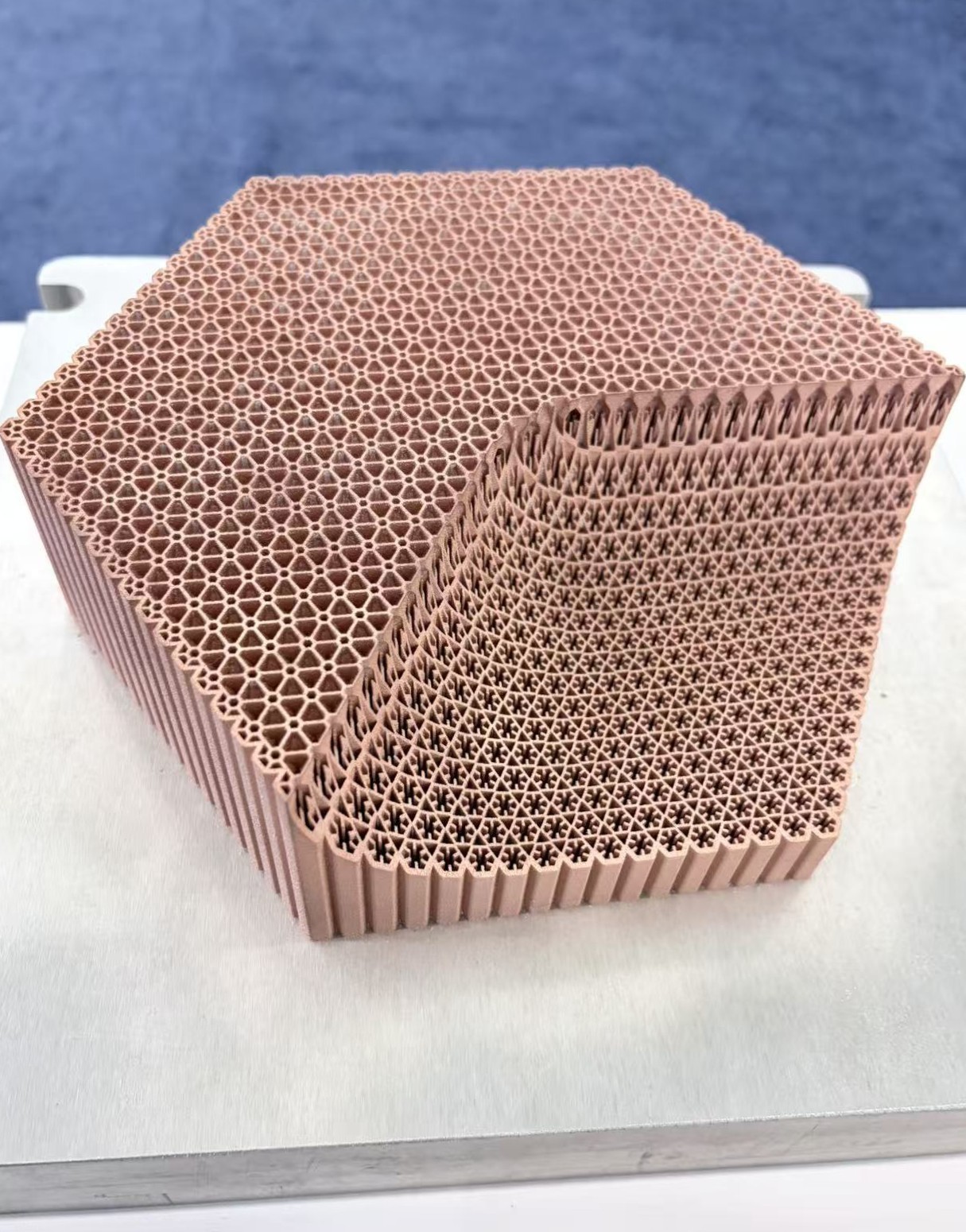

Copper additive hexagonal lattice heat-exchanger core with cutaway cell walls
Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
  1. 01

    Lattice core versus cold plate

    This core is about open hexagonal cells and manifold interfaces, not a flat sealing sandwich. Powder must leave through the cells before any performance talk.

    • Show manifold weld or braze lands if they exist on your drawing
    • Keep at least one inspection cut or borescope path in early articles
  2. 02

    Honesty bar

    No heat-duty numbers, no fluid names beyond what you specify, and no customer process claims on this page.

Especificación típica

Puntos de partida para esta pieza

Process
Copper powder-bed fusion
Material
Copper
Form
Hex lattice exchanger core
Section
Cutaway shows cell walls
Post
Powder removal through open cells
Copper additive hexagonal lattice heat-exchanger core with cutaway cell walls
Photo courtesy xa-blt.com (authorized for 3DWK use). 3DWK part case — brand remains 3DWK; not a BLT storefront listing.
